Model RSHT Chimney Fan Selection
Wood and Coal Fired Fireplaces and Stoves

QUICK SIZING....  STEP 1      Determine the type of opening, measure and calculate.....


One-sided   Two-sided (See-through)   Corner   Three-sided   Free-standing   Free-standing Round
A x B   1.5 x A x B   A x B   ( A + B ) x C   1.5 x A x B   1.185 x A2




QUICK SIZING....
STEP 2
Determine the type of flue and measure the INSIDE measurement... use the chart below to convert square and rectangular to round.

CONVERSION OF Rectangular / Square to Round Flues

Measure the INSIDE ( side to side ) measurements of the clay liner.

Ex...  The INSIDE measurement of 6 x 10" on a clay liner is equivalent to

10 (dim. A) - 6 (dim. B) = 8 (8" Flue Size)

NOTE:  Clay liners are "called" by their OUTSIDE measurements, the INSIDE measurements may vary depending on the manufacturer and location.
EX. A 13x13 clay liner may only have an INSIDE measurement of 10" x 10"


800 685 8263 or email us (info@volko.com)



QUICK SIZING....
STEP 3

Use of the following fan selection tables below to calculate the Exhausto fan required to fully exhaust the fireplace opening and flue system.

Note: The RED background indicates that the fan will most likely create some air-flow noise due to a high air velocity in the chimney.


  Fireplaces (wood-fired)
  Fireplace Opening in square inches
Flue Size Max. 400 Max. 600 Max. 900 Max. 1200 Max. 1500 Max. 2000 Max. 2500
5 RSHT 12 * * * * * *
6 RSHT 9 RSHT 12 * * * * *
7 RSHT 9 RSHT 12 RSHT 12 * * * *
 8 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 * *
9 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 * *
10 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 *
12 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16
14 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16
16 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16
18 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16
20 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16
22 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16
24 RSHT 9 RSHT 12 RSHT 12 RSHT 14 RSHT 14 RSHT 16 RSHT 16

If there are more than 2x90 elbows, a bigger fan may be necessary.


The "opening in square inches" refers to the fireplace or appliances over-all face opening.

EXAMPLE :  In a typical wood burning fireplace, if the hearth opening is 42" x 24" with a 13x13 clay liner (10 x 10" INSIDE MEASUREMENT) in a brick and mortar chimney we would...

Multiply the length and width, in this case 42" x 24" = 1008 square inches.  Being less than 1200, on the wood burning chart above, follow the column to the 10" flue size.  Highlighted in orange, the chart shows an RSHT 14 to be the proper size chimney fan for this application.


800 685 8263 or email us (info@volko.com)




Wood stoves, coal stoves and fireplace inserts

  Stoves Fireplace Inserts
  Door Opening in square inches     A x B
Flue Size Max. 300 OVER  300
6 RSHT 9 RSHT 12
7 RSHT 9 RSHT 12
8 RSHT 12 RSHT 12
9 RSHT 12 RSHT 14
10 RSHT 12 RSHT 14


If there is more than 2x90 elbows, a bigger fan may be necessary.



Check out our comparison page here
for a side by side comparison of RS and RSHT fans.

RSHT Printable PDF Data Sheet

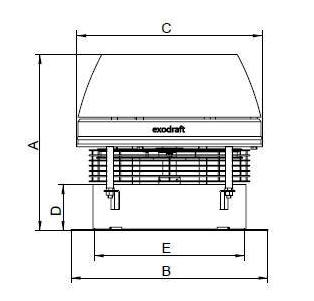

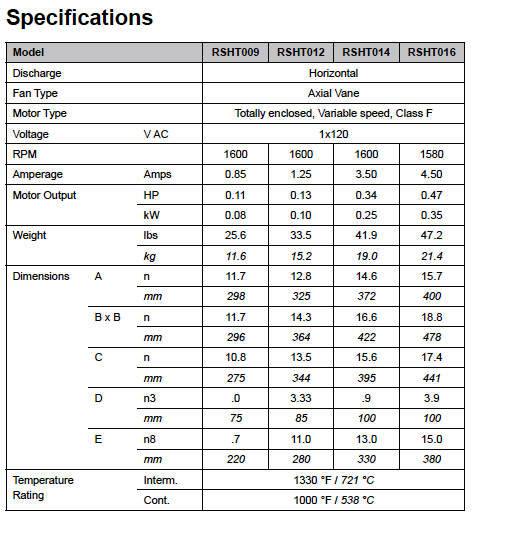

Fan Specifications



 Capacitor
 Wiring Diagram

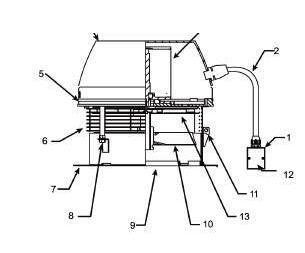

 1 Junction Box
 2
Conduit/cord
 3 Motor

4
Motor Housing
 5
Cooling Plates
 6 Bird Screen
 7 Base Plate
 8 Locking Nut
 9 Inlet

10 Axial Vane
 11 Hinges
 12
Capacitor
 ( inside J-box )
 13 Cooling Wheel


RS Chimney Adaptors will be necessary for any metal pipe installation.

SCA - Steel Chimney Adapter SCA - Steel Chimney Adapter

The ENERVEX Steel Chimney Adapter is used when installing the RS chimney fan on the top of a single, double or triple wall steel chimney. The adapter is designed to slide into the steel chimney for a tight fit. The outer diameter of the collar is 1/8 smaller than the inner diameter of the steel chimney, and has a 5 deep collar.

 SCA Adaptor
 Product Info PDF

ASCA Air Cooled Steel Chimney Adaptor ASCA - Air-cooled Steel Chimney Adapter

The ENERVEX Air-Cooled Steel Chimney Adapters are used specifically when installing a chimney fan on the top of a double-walled, air-cooled chimney.

The adapter is designed to slide into the chimney for a tight fit. The outer diameter of the collar is 1/8" smaller than the inner diameter of the chimney. The 5" collar eliminates the need to secure the adapter externally.

 ASCA Adaptor
 Product Info PDF





Enervex?... but my new fan says Exodraft.
Exhausto is now Exodraft, distributed as Enervex.
Read More...
Enervex Fans... draft solutions for kitchen and pizza oven exhaust.

Please call 800 685 8263 or email us (info@volko.com) for prices
